L-Series Kilns

Lumber Drying

Affordable Lumber Drying Compact Lumber Drying High-Quality Lumber Drying

Thumbnail 1

Thumbnail 2

Thumbnail 3

Thumbnail 4

Thumbnail 5

Thumbnail 6

Thumbnail 7

Embrace efficiency with Nyle's Low Temp DH Systems, the pinnacle of affordable lumber drying excellence. These systems are expertly designed to effectively dry lumber volumes ranging from 300 to 4,000 board feet. Prioritizing your financial and operational needs, they reduce upfront and ongoing expenses, ensuring a gentle impact on your wood and wallet. Upgrade to Nyle's Low Temp DH Systems for an optimal balance of quality, performance, and cost.

Key Features

Complete Drying Solution

Get everything you need for efficient lumber drying with Nyle's Low Temp DH Systems.

Superior Performance

Suitable for both enthusiastic hobbyists & professional woodworkers, these systems guarantee excellent drying results for every load.

Cost Effective

Combining quality with affordability, Our L-Series offers a reliable drying solution that won't overstretch your budget.

Introducing The L53 Low-Temp DH Kiln

With the L53, you can achieve superior-quality drying without breaking the bank. This compact and high-performance dehumidification system can dry between 300 and 1000 board feet of lumber, ensuring remarkable results with each batch. Equipped with two internal fans, a kiln control, and a powered vent kit, the L53 is perfect for both dedicated hobbyists and seasoned professionals.

Starting at:

$4,495.00

Financing Available: Payments as low as $110/ Month.

Order Now

Product Specifications

Load Capacity

300 - 400 BF (Pine/Poplar)

1,000 BF (Oak)

Water Removal Rate

60 lbs/day

Drying Time

4/4 Green Pine - 80% to 8% in approximately 12 days.

4/4 Green Oak - 65% to 8% in approximately 35 days.

Temperature Range

70° - 120°F - Drying Temp

120° - 160°F - Heat Treating*

Over Temperature Vents

One Powered Vent System

Power Requirements

120V, 60 Hz, Dedicated 15A Required

*The maximum heat-treating temperature depends on the chamber's construction and insulation. To accelerate heating in larger chambers, Nyle offers Auxiliary Heat Boosters.

Resources

L53 DH Kiln

Introducing the L200s Low-Temp DH Kiln

For more significant drying needs, the L200s model allows you to dry your lumber down to 6-8% moisture content for pennies per board foot. These compact, high-performance dehumidification systems will dry between 1,500 and 4,000 board feet of lumber. The L200S includes two circulating fans, a kiln control, and a powered vent kit.

Starting at:

$7,995.00

Financing Available: Payments as low as $185/ Month.

Order Now

Product Specifications

Load Capacity

1,500 - 2,000 BF (Pine/ Poplar)

4,000 BF (Oak)

Water Removal Rate

250 lbs/day

Drying Time

4/4 Green Pine - 80% to 8% in approximately 12 days

4/4 Green Oak - 65% to 8% in approximately 35 days

Temperature Range

70° - 120°F - Drying Temp

120° - 160°F - Heat Treating*

Circulating Fans

Two Included: 16" 1/3 HP, 1,800 CFM

Over Temperature Vents

One Powered Vent System Included

Power Requirements

240V, 60 Hz, Dedicated 40A Required

*The maximum heat-treating temperature depends on the chamber's construction and insulation. To accelerate heating in larger chambers, Nyle offers Auxiliary Heat Boosters.

Resources

L200 DH Kiln

Discover the Power of Precision Drying with the L200M Low-Temp Kiln

For larger drying needs, the L200M model provides an efficient solution, allowing you to dry lumber down to 6-8% moisture content at a low cost per board foot. These compact yet high-performance dehumidification systems can handle between 1,500 and 4,000 board feet of lumber. The L200M includes two circulating fans, a kiln control, a powered vent kit, and added moisture probes for enhanced monitoring and precision.

Starting at:

$8,495.00

Financing Available: Payments as low as $195/ Month.

Order Now

Product Specifications

Load Capacity

1,500 - 2,000 BF (Pine/ Poplar)

4,000 BF (Oak)

Water Removal Rate

250 lbs/day

Drying Time

4/4 Green Pine - 80% to 8% in approximately 12 days

4/4 Green Oak - 65% to 8% in approximately 35 days

Temperature Range

70° - 120°F - Drying Temp

120° - 160°F - Heat Treating*

Circulating Fans

Two Included: 16" 1/3 HP, 1,800 CFM

Over Temperature Vents

One Powered Vent System Included

Power Requirements

240V, 60 Hz, Dedicated 40A Required

*The maximum heat-treating temperature depends on the chamber's construction and insulation. To accelerate heating in larger chambers, Nyle offers Auxiliary Heat Boosters.

Resources

L200 DH Kiln

Discover the Advanced L200Pro Series

For those seeking top-tier drying performance, the L200Pro sets the standard in small-scale, low-temperature kilns. It offers advanced drying technology and precise control with three modes: Dehumidification (DH), Hybrid, and Conventional. The L200Pro’s state-of-the-art controller features a digital sensor for wet and dry bulb measurements, allowing for data logging, scheduling, & remote access. With circulating fans, integrated controls, and a powered vent kit, the L200Pro ensures optimal drying efficiency and consistent results.

Starting at:

$14,995.00

Financing Available: Payments as low as $340/ Month.

Order Now

Product Specifications

Load Capacity

1,500 - 2,000 BF (Pine/ Poplar)

4,000 BF (Oak)

Water Removal Rate

250 lbs/day

Drying Time

4/4 Green Pine - 80% to 8% in approximately 8 days

4/4 Green Oak - 65% to 8% in approximately 35 days.

Temperature Range

70° - 140°F - Drying Temp

140° - 160°F - Heat Treating

Circulating Fans

Four (4); 16" 1/3HP, 1,800 CFM

Over Temperature Vents

One (1) Powered Vent System

Power Requirements

240V, 60 Hz, Dedicated 100A Required

Resources

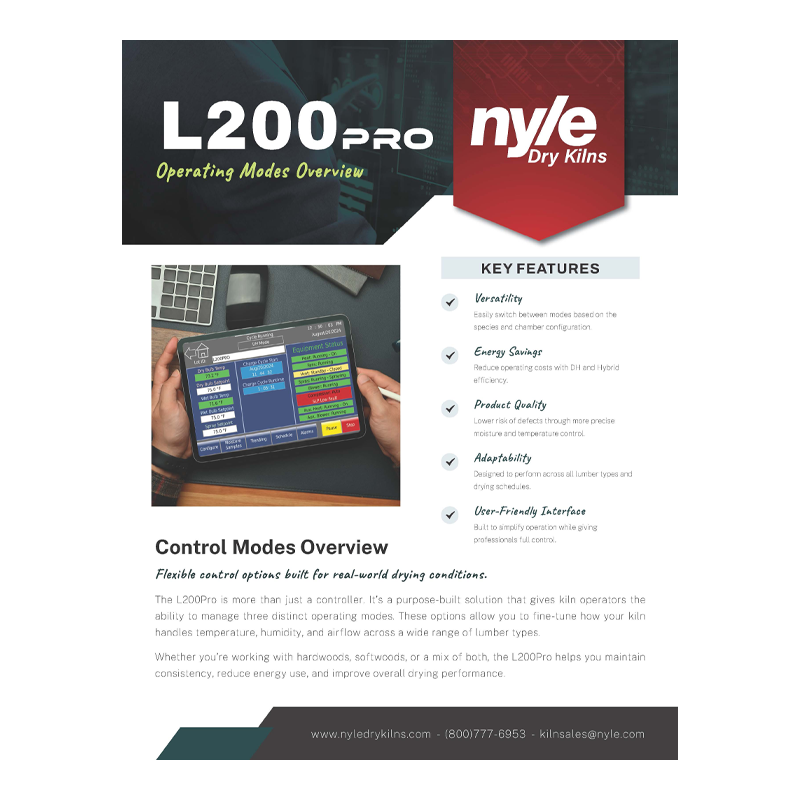

L200Pro DH Kiln

Elevate Your Drying Process with the L200Pro Series

The L200Pro delivers superior performance for small-scale, low-temperature drying. Featuring three advanced modes—Dehumidification (DH), Hybrid, and Conventional—it provides the flexibility to meet your drying needs. Its state-of-the-art controller, with digital wet and dry bulb sensors, enables precise control, data logging, scheduling, and remote access. Complete with eight circulating fans, integrated controls, and two powered vent kits; the L200Pro ensures maximum efficiency and consistent, top-quality results every time.

Starting at:

$18,995.00

Financing Available: Payments as low as $430/mo

Order Now

Product Specifications

Load Capacity

1,500 - 2,000 BF (Pine/ Poplar)

4,000 BF (Oak)

Water Removal Rate

250 lbs/day

Drying Time

4/4 Green Pine - 80% to 8% in approximately 8 days

4/4 Green Oak - 65% to 8% in approximately 35 days.

Temperature Range

70° - 140°F - Drying Temp

140° - 160°F - Heat Treating

Circulating Fans

Eight (8); 16" 1/3HP, 1,800 CFM

Over Temperature Vents

Two (2) Powered Vent System

Power Requirements

240V, 60 Hz, Dedicated 125A Required

Resources

L200Pro DH Kiln

Chamber & Container Packages

L200Pro Prefabricated Chamber

The L200Pro Chamber Kit is your all-in-one solution for professional-grade lumber drying. Measuring just over 16 ft. wide by 7 ft. high, this chamber is capable of drying 3,000 – 3,500 BF of 4/4 green oak in 4 to 5 weeks. This package includes an L200Pro DH Unit, Pro control, four circulating fans, a powered vent kit, and a prefabricated chamber kit.

Starting at:

$49,995

Financing Available: Payments as low as $1,060/ Month.

Product Specifications

Drying Time

1,500 - 2,000 BF (Pine / Poplar)

3,000 - 3,500 BF (Oak)

Circulating Fans

Four: 16” 1/3 HP, 1,800 CFM

Over Temperature Vents

One Powered Vent System

Load Space

(H x L x W)

7' x 5' x 16' 4"

Chamber Dimensions

(H x L x W)

10' 1" x 9' 2" x 18' 1"

Power Requirements

240V, 60 Hz, Dedicated 100A Required.

Resources

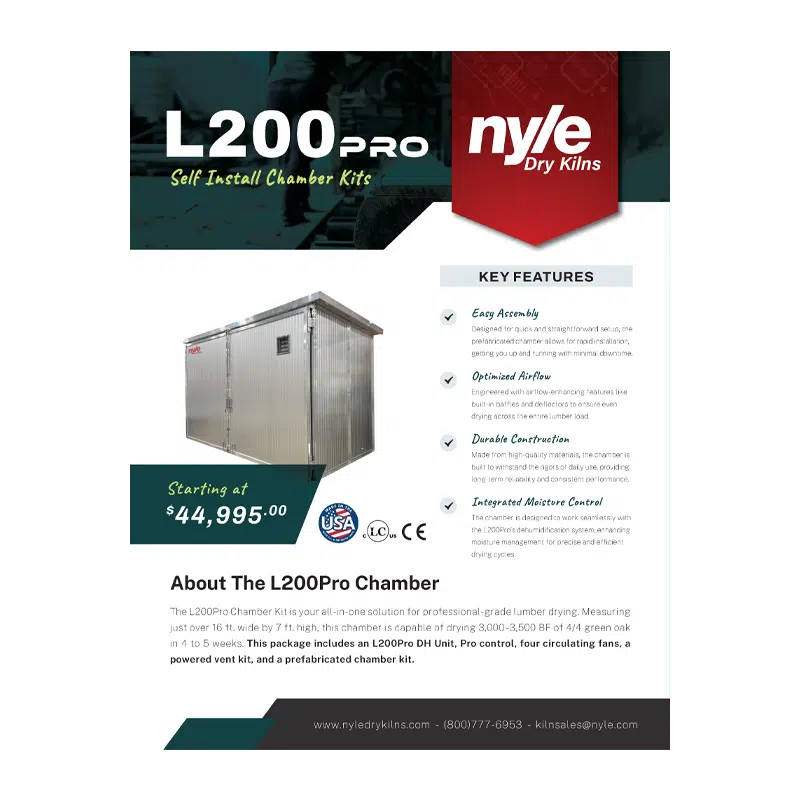

L200Pro Chamber Kit

L200PRO 20′ Container Kiln

The L200Pro container kiln package combines our proven drying technology with a fully insulated 20′ shipping container, delivering a complete, ready-to-use drying solution. Each package includes the L200Pro DH unit, a Pro control system, four circulating fans, a powered vent kit, and an insulated container—everything you need for efficient, reliable, high-quality lumber drying.

Starting at:

$49,995.00

Financing Available: Payments as low as $1,060/ Month.

Product Specifications

Drying Time

1,500 - 2,000 BF (Pine/ Poplar)

2,300 BF (Oak)

Circulating Fans

Four: 16” 1/3 HP, 1,800 CFM

Over Temperature Vents

One Powered Vent System

Load Space

(H x L x W)

5' 10" x 18' x 4'

Chamber Dimensions

(H x L x W)

8' 6" x 20' x 8'

Power Requirements

240V, 60 Hz, Dedicated 100A Required

Resources

L200Pro Container Kilns

L200Pro 40′ Container Kiln

Designed for larger drying operations, the L200Pro 40′ container kiln offers a spacious, fully insulated solution equipped with Nyle’s advanced drying technology. This turnkey system includes the L200Pro DH unit, a Pro control system, eight circulating fans, two powered vent kits, and a robust 40′ insulated container. Built for efficiency and performance, it delivers consistent, high-quality results while easily handling increased lumber volumes.

Starting at:

$64,995.00

Financing Available: Payments as low as $1,380/ Month.

Product Specifications

Drying Time

1,500 - 2,000 BF (Pine / Poplar)

4,000 BF (Oak)

Circulating Fans

Eight: 16” 1/3 HP, 1,800 CFM

Over Temperature Vents

Two Powered Vent Systems

Load Space

(H x L x W)

5' 10" x 38' x 4'

Chamber Dimensions

(H x L x W)

8' 6" x 40' x 8'

Power Requirements

240V, 60 Hz, Dedicated 125A Required.

Resources

L200Pro Container Kilns
